Flagpole Trucks - HDT-2 Series

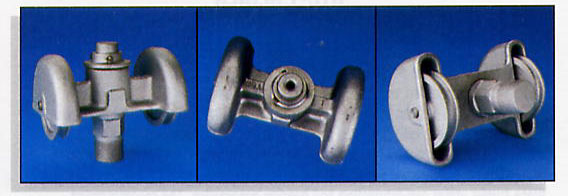

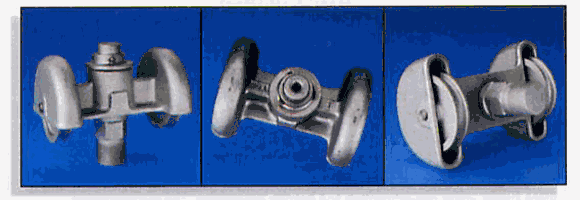

These Flagpole Trucks are available in your choice of Silver, Black, White or Bronze #313. Our Heavy-Duty Flagpoel Truck Series has cast aluminum construction with a 3 7/8" outside diameter cast aluminum pulleys on 1/2" stainless steel axles. The truck is designed to be used on flagpoles that have up to a 5 1/2" outside top diameter and a female fitting installed. This Flagpole Truck is for an external rope system flagpole.

The bottom portion of the spindle has a 1 1/4" threading and is screwed into the top of the flagpole while the top spindle is designed to accept an ornament with a spindle threading of 1/2". It can also be suppplied with other sizes of threading at an additional cost.

The ornament is secured to the truck with a 1/4" stainless steel set screw. For ease of rotation the truck body rotates on 26 stainless steel ball bearings on cast races. The recommended maximum rope diameter is 3/8".
