Flagpole Trucks - IH-2 Series

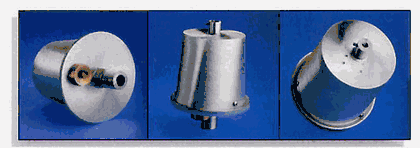

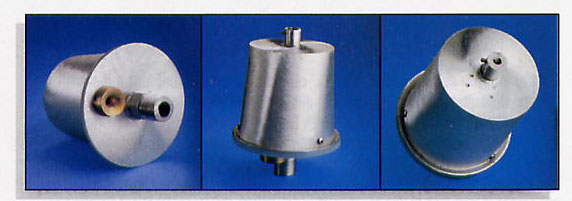

Our Flagpole Trucks are available in your choice of Silver, Bronze #313, White or Black. Our IH-2 Series Trucks are made from sturdy cast aluminum and have a 1 1/4" threaded spindle which screws into the top of the flagpole where a female fitting has been installed.This Flagpole Truck is for an internal rope system flagpole.

The top is designed to accept an ornament with a spindle threading of 1/2" as standard but can be supplied with any other threading at an additional cost. The ornament is secured to the truck with a size 1/4" stainless steel set screw. The 10 1/2" model has a stainless steel sealed lubricant bearing assembly while all other sizes utilize a stainless steel ball bearings in both upper and lower bearing races.

All sizes except 5" are supplied with a bronze bushing at the cable exit point. For added strength the extra large truck is supplied with a cast bronze spindle; all other sizes are supplied with a cast aluminum spindle.

The below drop down box is set up in the following manner: The 1st number is the base of the truck, the 2nd number is the height of the truck and the 3rd number is the maximum pole top diameter truck will fit.
